Specification:
Which International Specifications is to be followed i.e. BS, JIS, ASTM, ISO, or others please specify.

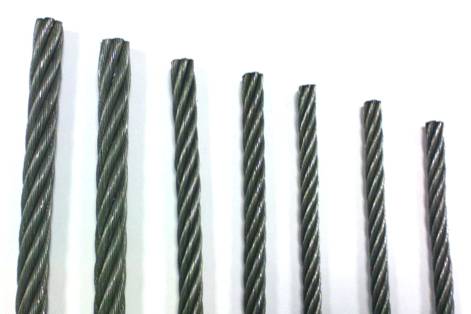

Diameter:
Diameter of the Wire Rope in millimeters (mm) or inch
Construction of Wire Rope:
There are a number of different constructions of Wire Rope. Specifying the constructions of the Wire Rope is very important.
Galvanized or Un-Galvanized:
The Wire Rope you need Galvanized (Zinc Coating) or Un-Galvanized.
Lay Ratio of the Wire Rope:
The lay Ratio are Right hand regular lay (Z) (RHRL) or right hand Lang’s lay (Z) (RHLL) or left hand regular lay (S) (LHRL) or left hand lay (S) (LHLL). This has to be specified which lay you need.
Core:
The Inner Core of the Wire Rope you need i.e. Strand Core (SC), Fiber Core (FC) or Steel Core (IWRC).
Tensile strength of wire (T/S)
You can use "N/mm²" or "KG/mm²".
Lubrication:
Type A (Very Light), Type B (Light Duty) “Tight Wipe”, Type C ( Heavy Duty) “Light Wipe”, Type D ( Post Lubrication) “No Wipe”
Length:
The Required length of the Wire Rope per wooden reel or coil.

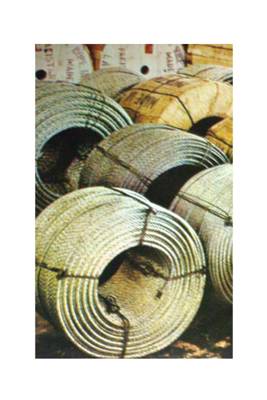

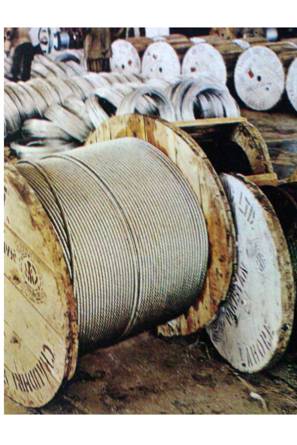

Package:
You need the Wire Rope on Wooden reel or in coil Strapped and wrapped
|
